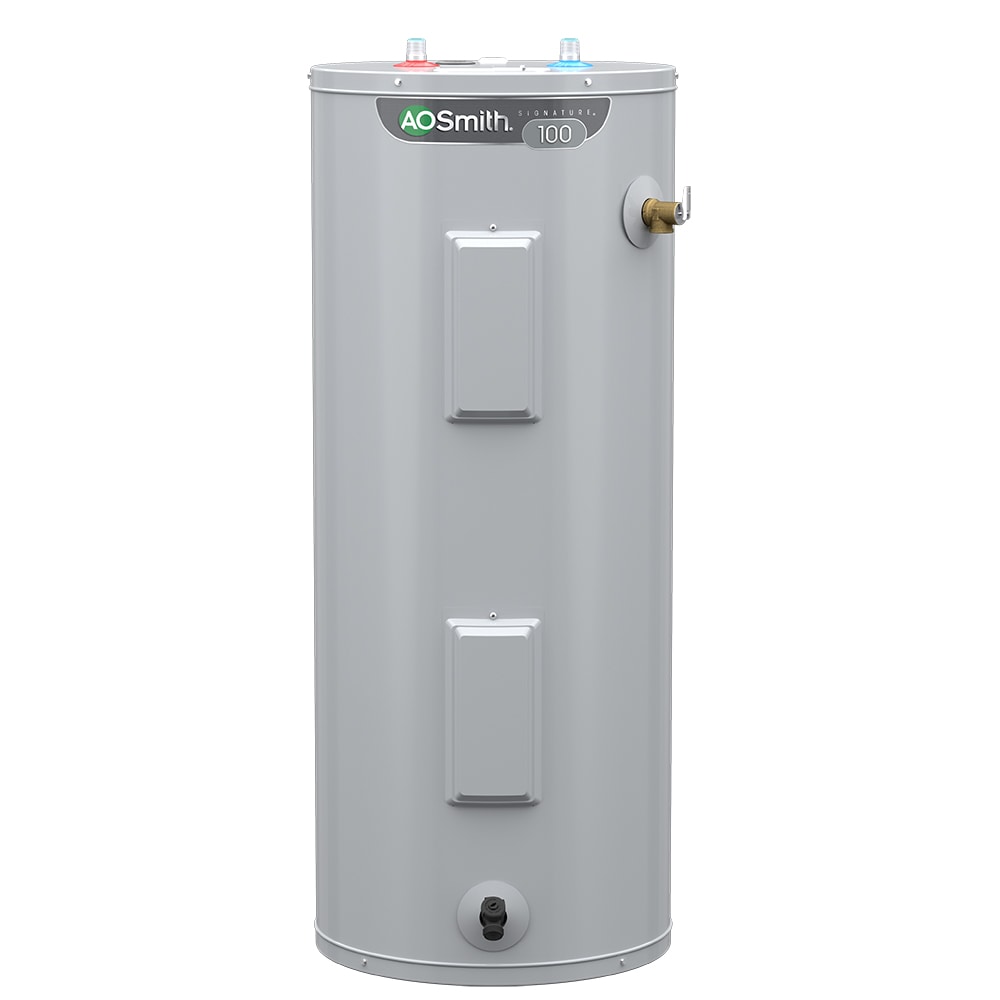

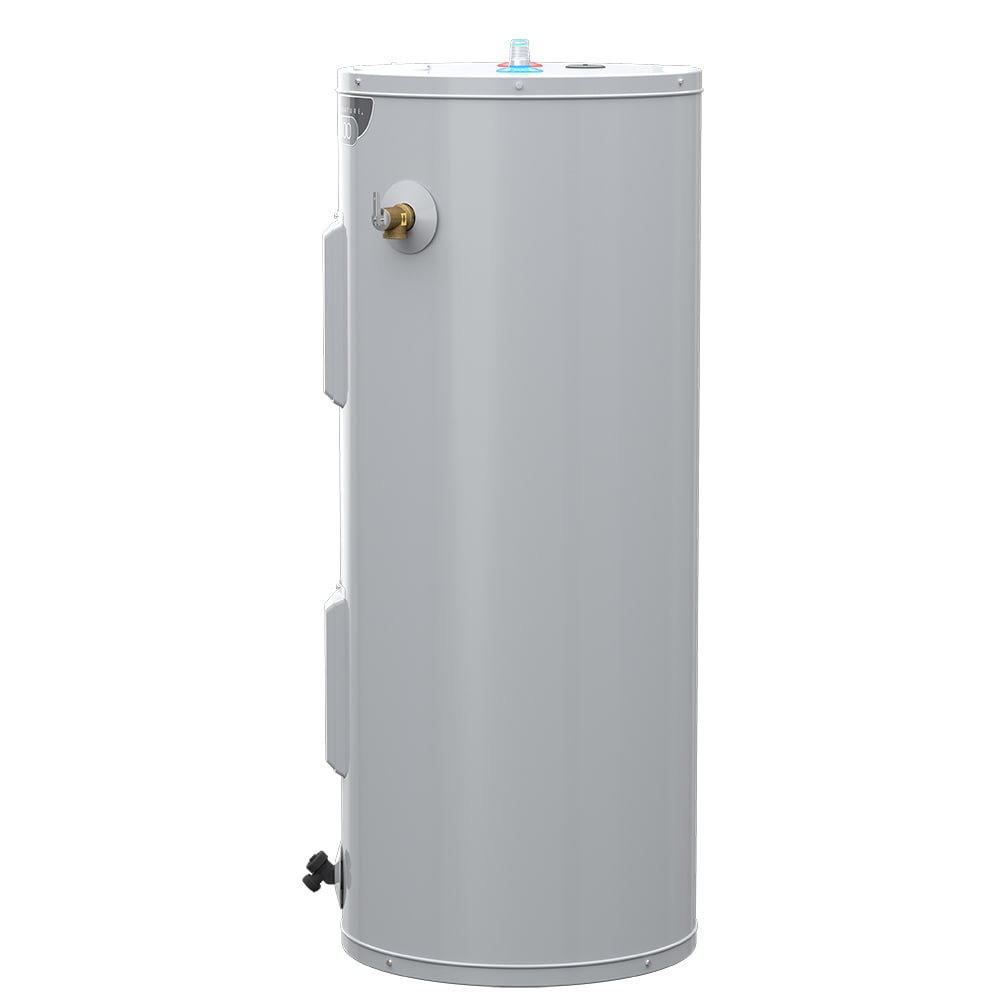

A.O. Smith Signature 100 40-Gallons Tall 6-year Warranty 4500-Watt Double Element Electric Water Heater
Enjoy an efficient and reliable hot water supply with A. O. Smith’s Signature 100 Series 40-gallon hot water heater. It’s designed to provide ample hot water for a household with 2 to 3 people when sized appropriately. A ceramic fused tank shield together with a protective anode rod help reduce internal tank corrosion. There is also a self-cleaning dip tube that reduces sediment buildup to further extend the life of the unit. This added protection comes with a 6-year limited warranty to give you additional peace of mind. Want to save money on your energy bills? This model operates at a 0.92 Uniform Energy Factor (UEF) which can reduce your energy consumption compared to less efficient models. Call 1-877-GOLowes to get this water heater installed.
Highlights
- Delivers the ideal amount of hot water for households with 2 to 3 people when sized appropriately
- Features two 4,500-watt copper heating elements that provide a first hour delivery of 53 gallons
- Operates at a 0.92 Uniform Energy Factor for maximum energy-efficiency and cost savings
- Tall, slim 61.25-in H x 18-in diameter profile enables easier installation in narrow spaces
- Provides superior tank protection and extends water heater life with premium heating elements, anode rod and fused ceramic tank shield
- Reduces heat loss with non-CFC polyurethane foam insulation and factory-installed heat trap nipples for maximum efficiency and energy savings
- Features easy temperature control with adjustable thermostat you can set higher or lower for dishwashers and laundry machines
- Factory-installed temperature and pressure relief valve and tamper-proof drain valve ensures safe operation
- Provides peace of mind with a 6-year limited tank and parts guarantee and a 1-year limited labor warranty
Specifications
| General | |||
|---|---|---|---|
| Series Name | Signature 100 | Type | Tank |
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 18 | Nominal Capacity (Gallons) | 40 |
| Diameter (Inches) | 18 | Rated Storage Capacity | 36-Gallon |
| Family Size | 3 | Water Connection Size | 3/4-in |
| Height (Inches) | 61.25 | Weight (lbs.) | 118 |
| Insulation Thickness (Inches) | 2 | Width (Inches) | 18 |
| Features | |||
|---|---|---|---|
| Annual Fuel Utilization Efficiency % (Percentage) | 0 | Point of Use | No |
| Foam Insulation | Yes | Power Source | Electric |
| For Use with Mobile Homes | Yes | Super High Efficiency | Yes |
| For Use with RVs | No | Temperature and Pressure Relief Valve | Yes |
| GPH Recovery at 90 Degrees F (Gallons) | 20.7 | Uniform Energy Factor | 0.92 |
| Grade | Residential | Use Location | Indoor |
| Grid Capable | No | Voltage (Volts) | 240 |
| Hybrid Heat Pump Technology | No | Water Connection Location | Top |
| Installation Location | Closet | Water Heater Style | Tall |
| Compatibility | |||
|---|---|---|---|
| Bluetooth Compatibility | No | Works with Apple HomeKit | No |
| Smart Compatible | No | Works with iOS | No |
| Wi-Fi Compatibility | No | Works with SmartThings | No |
| Works with Amazon Alexa | No | Works with the Google Assistant | No |
| Works with Android | No | ||
| Warranty | |||
|---|---|---|---|
| Warranty | 6-year limited | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | CSA safety listing | |
| ENERGY STAR Certified | No | ||
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 40101800 | ||
